Rail Series
Arctic Anchor - Rail Series
Clamp Style for Standing Seam Roofs
The Arctic Anchors Clamp-Style Rail System is engineered for robust snow retention on standing seam roofs in light to extreme snowfall regions. Designed for durability and ease of installation, this system excels in both commercial and high-demand residential projects, offering reliable performance tailored to standing seam roof applications.
Crafted with TitanCore™, a high-strength polymer blend, the Clamp-Style Rail System combines exceptional strength with a lightweight, corrosion-resistant build. Its innovative clamp-on design ensures secure, non-penetrative attachment to standing seam profiles, preserving roof integrity while simplifying installation. The modular system supports both 1-bar and 2-bar configurations, providing flexibility to meet diverse project requirements.

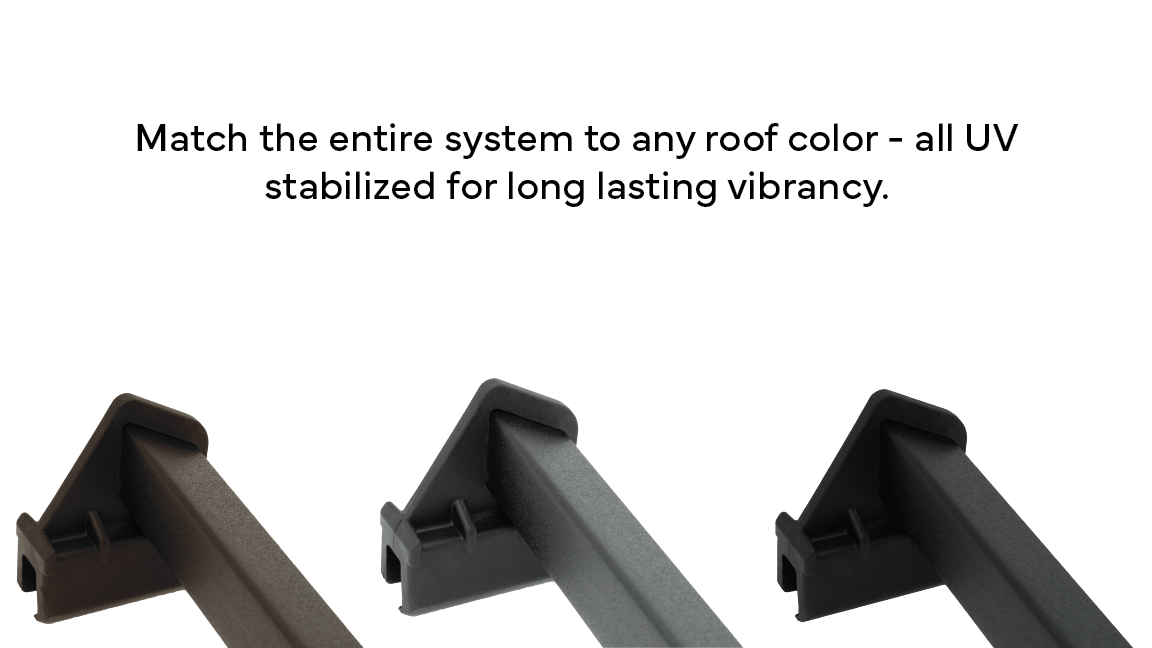

Compatible with all standing seam roof profiles, the Clamp-Style Rail System offers a streamlined clamp-on installation process and is available in customizable color options to seamlessly match any roof aesthetic.
Arctic Anchor - Rail Series
Mechanical Style
The Arctic Anchors Mechanical Rail Series is designed for large-scale snow retention projects in light to extreme snowfall regions. Engineered for durability and versatility, this system is ideal for standing seam roofs, offering superior performance in both commercial and high-demand residential applications.
Built with TitanCore™, a high-strength polymer blend, the Mechanical Rail Series delivers exceptional strength while remaining lightweight and corrosion-free. Its modular design supports both 1-bar and 2-bar configurations, allowing for flexible installation tailored to your project’s specific needs.
The Mechanical Rail Series is compatible with all standing seam roof profiles, provides options for both clamp-on and mechanical attachment, and is available in customizable color options to blend seamlessly with any roof design.
Specifications
Rail Length: 7'
Material: TitanCore™ - Proprietary Blend with UV Stabilizers
Maximum Load: 1,400lbs/ft (Brackets spaced every 18")
Mounting Methods:
-
#10 Neoprene Washered Metal Roofing Screws with Surebond Everseal (SB-190) Adhesive
Optimal Snowfall Range: Moderate - Extreme
Optimal Roof Pitch Use: 5:12 - 12:12
Specifications
Dimensions: 4.7” x 1.5" x 2.5"
Weight: 1.5oz
Material: TitanCore™ - Proprietary Blend with UV Stabilizers
Maximum Load: 3,500lbs
Mounting Methods:
-
#10 Neoprene Washered Metal Roofing Screws
-
Surebond Everseal (SB-190) Adhesive
Optimal Snowfall Range: Moderate - Extreme
Optimal Roof Pitch Use: 5:12 - 12:12
Strong as Steel, Light as Air, Color That Lasts.
